Knotting Machine
This twisting device can automatically dispense and twist in precise quantities, ensuring high stability.
It is easy to operate.
The entire machine is made of high-quality 304 stainless steel, meeting HACCP hygiene standards.
Suitable for various sausage casings.

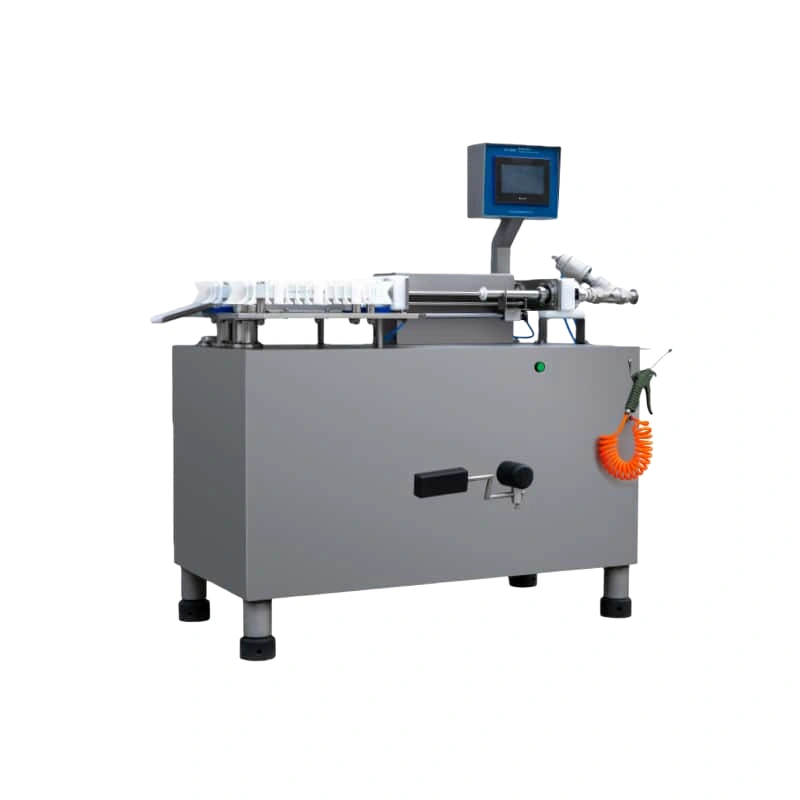

Single-tube Knotting Machine
● It can be used in conjunction with various filling machines to form an automated production line.
● The single-tube knotting machine has one nozzle. After the nozzle finishes filling the casing, the worker needs to place a new casing and then continue filling.
Double-tube Knotting Machine
● It can be used in conjunction with the SH-8X filling machine to form an automated production line.
● The dual-tube knotting machine has nozzles on both the upper and lower sides. During filling, the worker can insert a new casing onto the upper nozzle. After the lower casing is filled, the two nozzles can be quickly switched, thus ensuring continuous filling and significantly improving production efficiency.
Knotting Product Parameters
It can be used in conjunction with filling machines and other equipment to form an automated production line.
| Model | CNJ-1600-I | CNJ-1600-II |
| Power supply | 380V/50HZ | 380V/50HZ |
| Power(Kw) | 3.8 | 8.2 |
| Twisting speed (times) | 1600 | 1600 |
| Maximum twisting speed(r/min) | ±1.5(minced meat)/±2.5(meat chunks) | ±1.5(minced meat)/±2.5(meat chunks) |
| Knot length (mm) | 30~220 | 25~1000 |
| Natural sausage casings(mm) | 16~50 | 16~38 |
| Protein sausage casing(mm) | 16~32 | 16~32 |
| Installation dimensions(mm) | 1400×700×1500 | 2000×850×1600 |
| Weight(Kg) | 9000×2500×3300 | 9000×2500×3300 |
