| Model | SH-3500 | SH-6500 |
| Power supply | 380V/50Hz | 380V/50Hz |
| Power(Kw) | 8.4 | 11.1 |
| Hopper volume(L) | 260 | 260 |
| Maximum Direct Irrigation Capacity(Kg/H) | 3500 | 6500 |
| Height of work center(mm) | 1000(adjustable) | 1000(adjustable) |
| Degree of vacuum(Mpa) | -0.1 | -0.1 |
| Quantitative accuracy(g) | ±1.5(minced meat)±2.5meat chunks) | ±1.5(minced meat)±2.5meat chunks) |
| Maximum twisting speed(r/min) | 500 | 500 |
| Screw conveyor speed(Max.r/min) | 60 | 60 |
| Host size(mm) | 1760×1200×1850 | 2000×1500×1950 |
| Installation dimensions(mm) | 3000×2000×3300 | 3500×2000×3300 |
| Weight(Kg) | 1175 | 1340 |

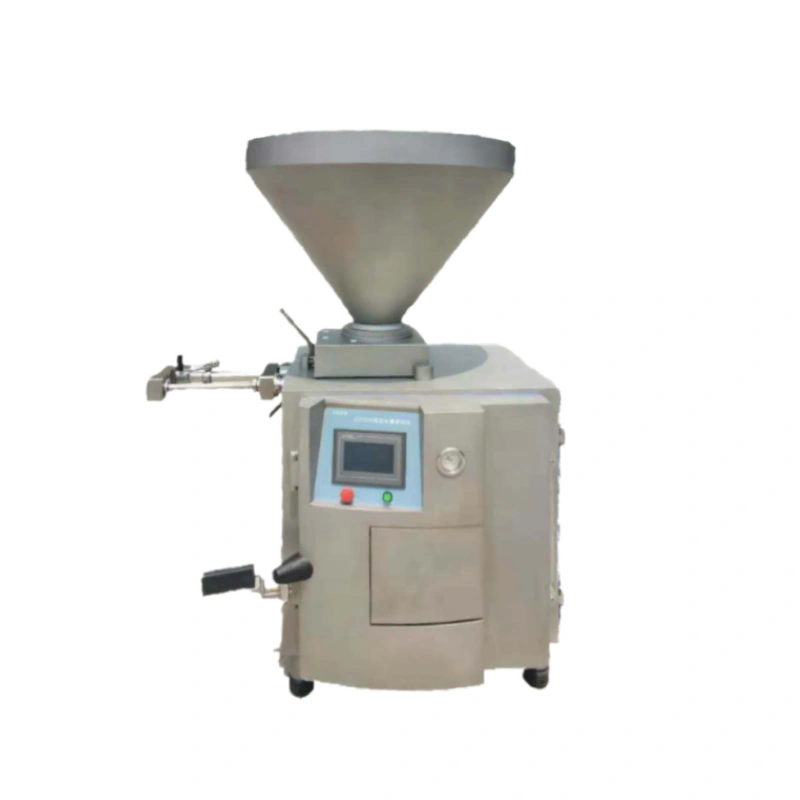

Vacuum filling machine
SH-3500/SH-6500
●It can automatically twist and is also compatible with single-tube high-speed twisting machines.
●Suitable for industrial production
●There are two options: quantitative and non-quantitative.
●Equipped with automatic compensation device and multiple safety protection systems
